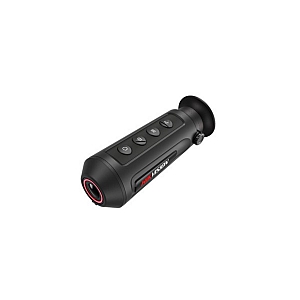

HIK MICRO Lynx Pro 15mm Thermal Monocular

MAIN
Sensor: 384×288px @ 17µm
Objective Lens: 15 mm
Detection Range (Vehicle 1.4 x 4m): 1353 m
Detection Range (Human 1.8 x 0.5m): 441 m

SENSOR
Type: Vanadium Oxide Uncooled Focal Plane Arrays
Resolution, pixels: 384 × 288 px
Pixel pitch, µm:17µm
Frame rate, Hz: 50 Hz
NETD: <35mK

OPTICS
Objective lens: F1.0
Magnification (Optical): 1x
Magnification (Digital): 1x, 2x, 4x,
Field of view: 24.6° × 18.5° (H × V)

DISPLAY
Type: 5.08mm, LCOS
Resolution, Pixels: 720 × 540
Colour Palettes: Black Hot, White Hot, Red Hot, Fusion

Video Recorder
Video / Photo resolution:
Video / Photo format:
Build in memory: 8 Gb

Additional features
Hot Tracking: YES
WiFI hot spot: YES
T-Vision App support: YES

Environmental
Degree of protection, IP code: IP67
Dust protection: Protected against dust ingress
Water protection: Protected against temporary submersion in water
Operating temperature range: -20 °C to 55 °C

WEIGHT & SIZE
Dimensions, mm: 161 mm × 61 mm × 57 mm
Weight, kg: 0.27 kg

POWER SUPPLY
"Operating time on battery
(WiFi & Hot tracking disabled)": 7 hours continuous running
Charging interface: USB-C
Battery capacity after 1000 cycles: 80%

Warranty Period
Main Unit: 3 Years
Battery: 2 Years


RRP £999.99
