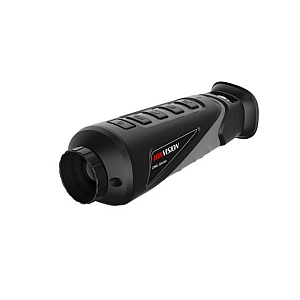

HIK MICRO Owl 35mm Thermal Monocular

MAIN
Sensor: 384×288px @ 17µm
Objective Lens: 35mm
Detection Range (Vehicle 1.4 x 4m): 3157m
Detection Range (Human 1.8 x 0.5m): 1029m

SENSOR
Type: Vanadium Oxide Uncooled Focal Plane Arrays
Resolution, pixels: 384 × 288 px
Pixel pitch, µm: 17µm
Frame rate, Hz 50 Hz
NETD Rating: 35mK

OPTICS
Objective lens: F1.0
Magnification (Optical): 2.36x
Magnification (Digital): 1x, 2x, 4x,
Field of view: 10.66° × 8° (H × V)

DISPLAY
Type: 9.9mm, OLED
Resolution, Pixels: 1024 ×768
Colour Palettes: Black Hot, White Hot, Red Hot, Fusion

VIDEO & SOUND

Video Recorder: YES
Sound Recorder: NO
Build in memory, Gb: 16 gb

ADDITIONAL FEATURES
Hot Tracking: YES
WiFI hot spot: YES
T-Vision App support: YES

ENVIRONMENTAL
Degree of protection, IP code: IP67
Dust protection: Protected against dust ingress
Water protection: Protected against temporary submersion in water
Operating temperature range: -30 °C to 55 °C

WEIGHT & SIZE
Dimensions, mm: 189 mm × 74 mm × 66 mm
Weight, kg: 0.46 kg

POWER SUPPLY
Operating time on battery
(WiFi & Hot tracking disabled): 5 hours continuous running
Charging interface: USB-C
Battery capacity after 1000 cycles: 80%
