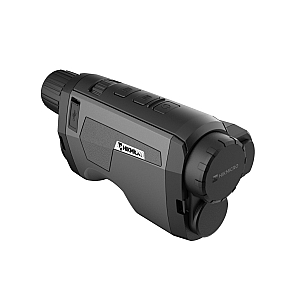

HIK MICRO Gryphon 25mm Fusion Thermal & Optical Monocular With LRF

COMING SOON

The Gryphon Fusion Monocular introduces many unique features including ground-breaking bi-spectrum, Fusion technology which uses a thermal sensor alongside a conventional optical camera to deliver a super-detailed thermal image.

You can use the Gryphon in several distinct image modes including a conventional thermal monocular with the choice of 4 colour palettes, a highly detailed daylight & night vision optical camera or the unique Fusion mode which uses the detail from the optical channel to boost the definition and detail of the thermal image.

The Gryphon chassis also introduces a range of new features. These include a jog wheel that allows you to scroll the magnification up and down as you would with a conventional optical scope, an optional laser range finder and a removable 18650 battery. The large 1024x768 OLED display gives you a bright and crisp view of your surroundings that’s easy on your eye.

At the centre of the Gryphon is HIKMICRO’s 384x288px, 12µm thermal sensor with a sub 35mk NETD. This highly accurate thermal sensor is capable of detecting small temperature differences, building a highly detailed image, even in the harshest of conditions.

The thermal sensor is paired with HIKMICRO’s high performance 25mm focal length lens system which delivers 2.4x optical magnification with up to 8x digital magnification also available to expand the detail in your image. The thermal lens system also has a high specification F1.0 aperture, this means that all of the available thermal signal reaches the sensor. This combines with the highly accurate thermal sensor to deliver excellent thermal performance.

This is paired to a high-resolution optical camera that is capable of providing a detailed image both in daylight hours and in complete darkness using the supplied IR torch. You can quickly switch between pure thermal view and the detailed optical mode to detect and accurately identify heat sources.

The Gryphon also includes the unique Fusion mode which adds the detail from the optical image to boost the performance of the thermal channel, delivering the ultimate in detection and detail.

The Gryphon uses an all-new chassis design which has been developed to be easily held and operated in one hand. There are three buttons on the top of the unit make it easy to operate the laser range finder and switch between image modes. HIKMICRO have also included a revolutionary jog wheel that falls comfortably to the tip of your index finger and can be used to scroll up and down the magnification like a conventional optical scope. This jog wheel is also used to quickly navigate the menu system.

The 600m laser range finder is located on the left-hand side of the unit in a compact housing and offers a distance reading accurate to ±1m. When activated there is a small crosshair added to the display that can be used to target the rangefinder. Simply press and hold the Rangefinder button and the distance to your target is displayed in the screen.

The Gryphon is also the first Monocular in the HIKMICRO range to be powered by the industry standard 18650 removable battery. This makes extended hunting trips possible without any power concerns. Replacement batteries are readily available and economical to buy. There is also a high specification charger included with your Gryphon, this provides lots of detail about the charging status and health of your batteries ensuring that you aren’t caught in the field with a dead battery.

There are lots of other small improvements that have been included like the power button includes a status light so you can see at a glance if the unit is powered on or in standby mode.

As with all other HIKMICRO thermal products you can access the T-Vision app to stream, record and control your Gryphon. You can also record images and videos from your trips to the 16GB internal memory. The latest version of the T-Vision app offers extended features like access to the LRF, transferring images stored on the device into your phone and also the ability to install the latest firmware.

All thermal sensors used in HIKMICRO products are designed, developed and manufactured by HIKMICRO. This guarantees you unrivalled performance and value for money. You are also covered by the 3 years HIKMICRO UK warranty. Should you encounter a problem with your product, HIKMICRO have UK based technicians who can resolve any issue quickly.

More Information
More Information
Brand HIKMICRO
Popularity HIKMICRO Gryphon 25mm Fusion Thermal & Optical Monocular With LRF
SKU HM-GH25L
Unit Type Thermal
Colour Palettes Yes
Detection Range 1250m
Display Resolution 1024x768
Display Type OLED
FOV @ 100 yards 10.5°
Magnification (Digital) 8x
Magnification (Optical) 2.4x
NETD <35mK
Objective Lens Diameter 25mm
Operating Temperature -20/+55°C
Pixel Pitch 12μm
Rangefinder LRF
Refresh Rate 50HZ
Sensor Resolution 384x288
Video Recording Yes
WiFi Yes
RRP £2199.00

• MAIN
• Sensor 384×288px @ 12�m
• Objective Lens (Focal Length) 25mm
• Detection Range (Human 1.8 x 0.5m) 1250m
• SENSOR
• Type VOx Uncooled Focal
• Plane Arrays
• Resolution, pixels 384×288px
• Pixel pitch, �m 12�m
• Frame rate, Hz 50 Hz
• NETD 35mK
• THERMAL OPTICS
• Objective lens F1.0
• Magnification (Optical) 2.4x
• Magnification (Digital) 1x, 2x, 4x, 8x
• Field of view 10.53�× 7.9�
• FUSION CAMERA
• Sensor resolution 1960x1200px
• Wavelength sensitivity 400-1000 nm
• Focal length 22mm
• LASER RANGEFINDER
• LRF Fitted Yes
• Maximum range 600m
• Measurement accuracy � 2m
• DISPLAY
• Type 9.9mm, OLED
• Resolution, Pixels 1024 ×768
• Colour Palettes White Hot, Black Hot, Red Hot, Fusion, Visible, Thermal and Visible Fusion
• Video Recorder
• Build in memory, Gb 16 gb
• Additional features
• Hot Tracking
• WiFI hot spot YES
• T-Vision App support YES
• Environmental
• Degree of protection, IP code IP67
• Dust protection
• Protected against dust ingress
• Water protection Protected against temporary submersion in water
• Operating temperature range -20 �C to 55 �C
• WEIGHT and SIZE
• Dimensions, mm 87mm x 73mm x 167mm
• Weight, kg 0.5 kg
• POWER SUPPLY
• Operating time on battery
• (WiFi and Hot tracking disabled)
• 8 hours continuous running
• Charging interface Removable 18650 battery
